1.Material | Malleable Iron,Q235,Carbon steel,stainless steel |
2.Size | 5/16 inch to 1 inch |

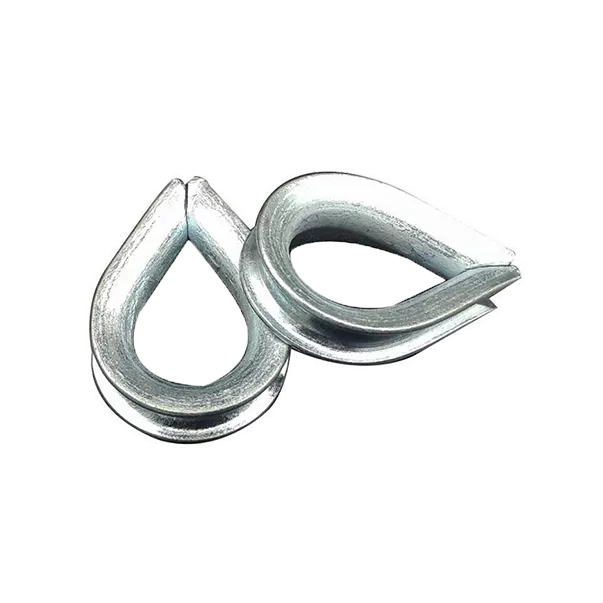

3.Model Number | Thimble |
4.Technology | Casting and Forging |
5.Surface treatments | Electric galvanized, color painting or self color. Hot dip galvanized |
6.Drawings or samples | Processing/OEM/ODM service provided. |
7.Produce Process | Drawings→ mould making → preforging →rough machining or finish machining →surface treatment →product checking and quality control→ packing →delivery |

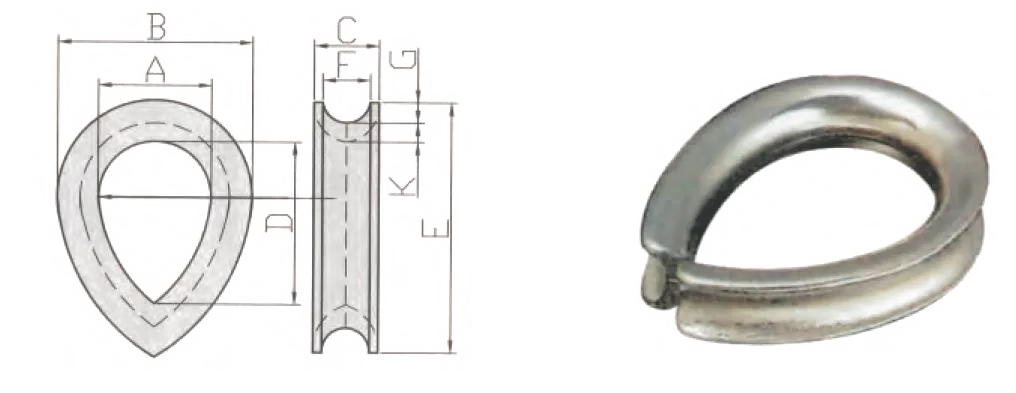

Rope Dia. (in) | Dimensions(in) | Weight Each (Kg/pc) | ||||||||
A | B | C | D | E | F | G | K | Q | ||
5/16 | 22.2 | 38 | 12.7 | 33.4 | 52 | 7.9 | 4 | 4 | 30.1 | 0.077 |
3/8 | 25.4 | 47.6 | 14.3 | 38 | 64 | 10.3 | 6.3 | 4.8 | 35 | 0.1 |
7/16 | 28.6 | 52 | 17.5 | 41.3 | 73 | 12.7 | 7.9 | 4.8 | 38 | 0.107 |
1/2 | 31.7 | 53.8 | 20.6 | 44.5 | 79.4 | 14.3 | 7.9 | 5.5 | 42.9 | 0.17 |
9/16 | 31.7 | 58.8 | 20.6 | 44.5 | 79.4 | 14.3 | 7.9 | 5.5 | 42.9 | 0.189 |
5/8 | 41.3 | 74.5 | 22.2 | 58.8 | 95.8 | 15.9 | 8.7 | 7.9 | 56 | 0.3 |
3/4 | 50.8 | 92 | 28.6 | 73 | 124 | 20.6 | 11.1 | 9.5 | 69.8 | 0.6 |
7/8 | 56 | 102 | 31.7 | 82.5 | 133 | 22.2 | 12.7 | 9.5 | 76.2 | 0.69 |
1 | 69.8 | 119 | 35 | 108 | 162 | 27 | 14.3 | 10.3 | 90.5 | 1.15 |
