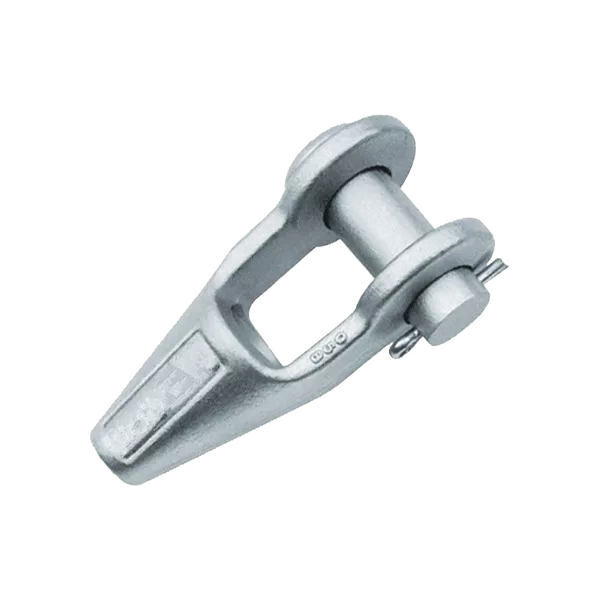

G416 Open Spelter Socket

1. Connect with wire rope, open spelter socket casting with wire rope.

2. Termination efficiency 100% of wire rope breaking load.

3. Open Spelter Socket applied in the end of wire rope.

4. Type: Socket + C shackle + Swivel socket + Chain and so on.

5. Fast replacement speed to ensure the best safety performance and economic benefits.

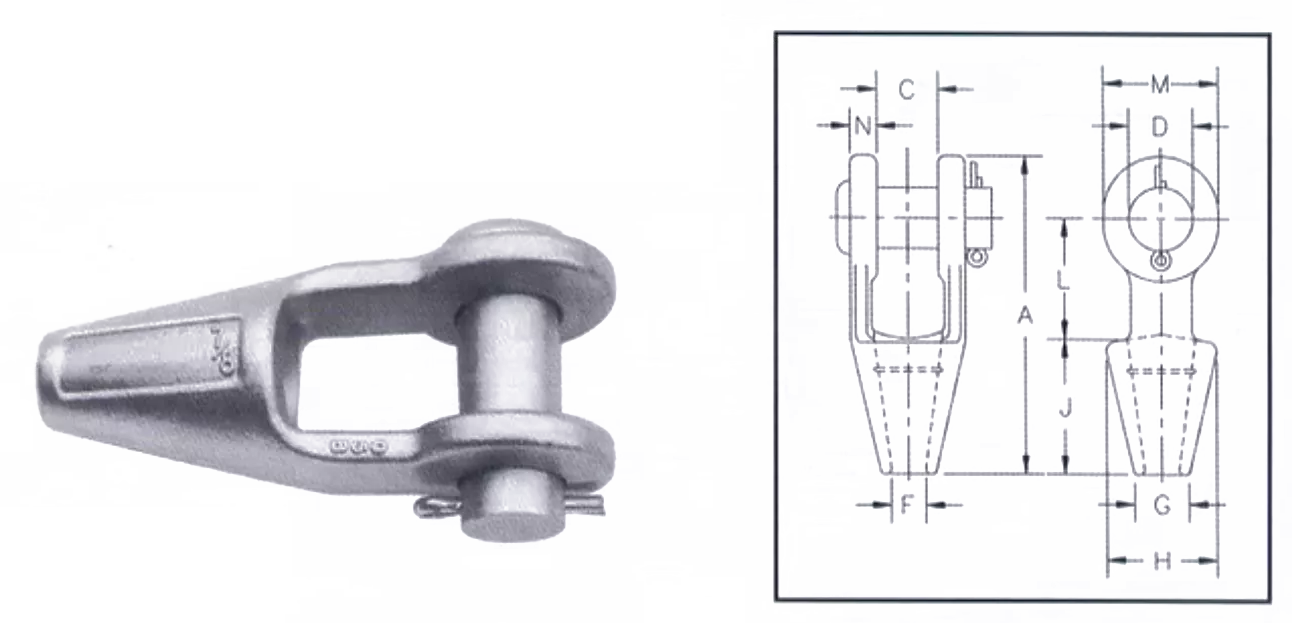

tem No.

Ultimate load

Nominal size

A

C

D

F

G

H

J

L

M

N

Weight

(dia of rope)

tons

in

mm

mm

kg

GRO416-1

4.5

1/4

6-7

116

19.1

17.5

9.65

17.5

39.6

57

39.6

33.3

9.1

0.5

GRO416-2

12

5/16 - 3/8

8-9

123

20.6

20.6

12.7

20.6

42.9

57

44.5

38.1

11.2

0.59

GRO416-3

20

7/16 - 1/2

11-12

141

25.4

25.4

14.2

23.9

47.8

63.5

51

47.8

12.7

1.02

GRO416-4

27

9/16 - 5/8

14-16

171

31.8

30.2

17.5

28.7

57

76

63.5

57

14.2

1.863

GRO416-5

43

3/4

18

202

38.1

35.1

20.6

31.8

66.5

89

76

66.5

15.7

2.64

GRO416-6

55

7/8

20-22

235

44.5

41.4

23.9

38.1

82.5

102

89

79.5

20.3

4.438

GRO416-7

78

1

24-26

268

51

51

28.7

44.5

95.5

114

102

95.5

22.4

7.03

GRO416-8

92

1-1/8

28-30

300

57

57

31.8

51

105

127

117

105

25.4

9.75

GRO416-9

136

1-1/4 - 1 3/8

32-35

335

63.5

63.5

38.1

57

121

140

127

121

28.7

14.1

GRO416-10

170

1-1/2

38

384

76

70

41.4

70

133

152

152

137

30.2

21.4

GRO416-11

188

1-5/8

40-42

413

76

76

44.5

76

140

165

165

146

33.3

24.9

GRO416-12

268

1-3/4 - 1 7/8

44-48

464

89

89

51

79.5

162

191

178

165

39.6

37.2

GRO416-13

291

2-2-1/8

50-54

546

102

95.5

57.2

95.5

187

216

229

178

46

59

GRO416-14

360

2 1/4 - 2 3/8

56-60

597

114

108

63.5

102

210

229

254

197

54

76

GRO416-15

424

2-1/2 - 2 5/8

64-67

648

127

121

73

114

235

248

274

216

60.5

114

GRO416-16

511

2-3/4 - 2 7/8

70-73

692

133

127

79

124

267

279

279

229

73

143

GRO416-17

563

3 - 3 1/8

75-80

737

146

133

86

133

282

305

287

241

76

172

GRO416-18

722

3-1/4 - 3 3/8

82-86

784

159

140

92

146

302

330

300

254

79

197

GRO416-19

779

3-1/2 - 3 5/8

88-92

845

171

152

98.5

165

314

356

318

274

82.5

255

GRO416-20

875

3-3/4 - 4

94-102

921

191

178

108

184

346

381

343

318

89

355
