G417 Closed Spelter Socket

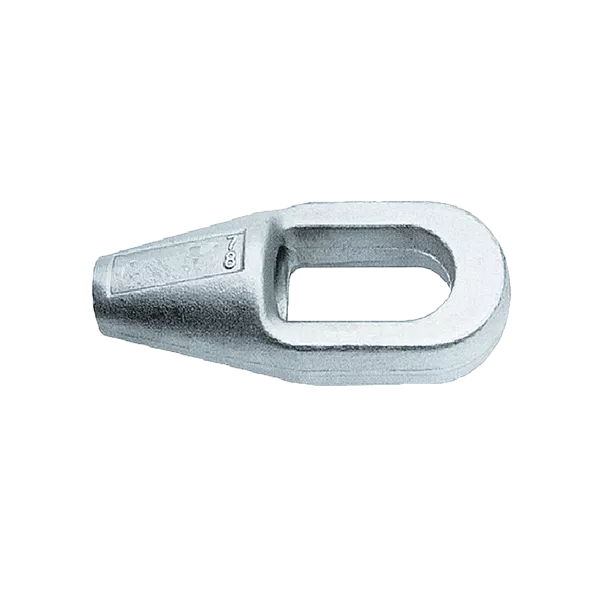

G417 Closed Spelter Socket

1. Connect with wire rope, Closed spelter socket casting with wire rope.

2. Termination efficiency 100% of wire rope breaking load.

3. Closed Spelter Socket applied in the end of wire rope.

4. Type: Socket + C shackle + Swivel socket + Chain and so on.

Fast replacement speed to ensure the best safety performance and economic benefits.

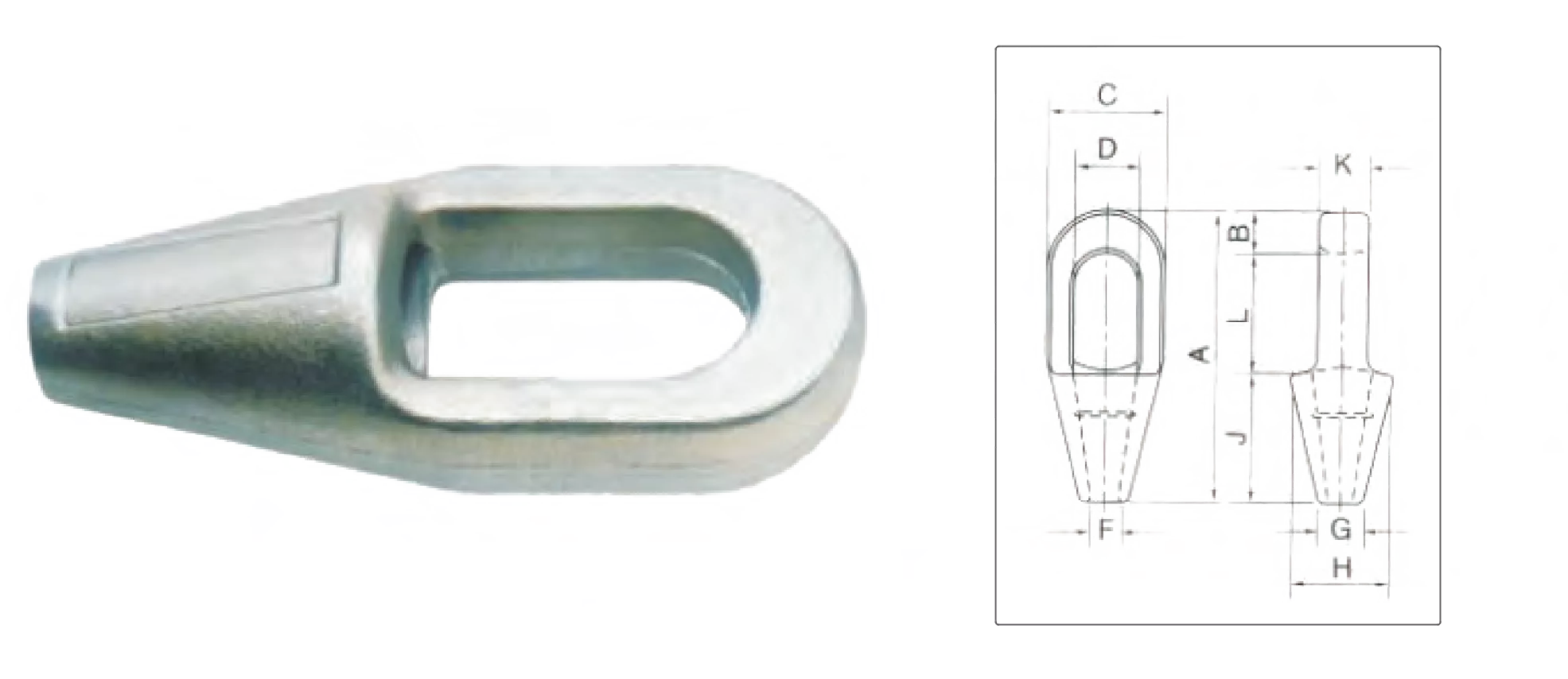

​Item No.

Ultimate load

Normal size

(dia of rope)

A

B

C

D

F

G

H

J

K

L

Weight

tons

in.

mm

mm

kg

GRO417-1

4.5

1/4

6-7

116

12.7

39.6

22.4

9.65

17.5

39.6

57.2

12.7

46

23

GRO417-2

12

5/16 - 3/8

8-9

125

15.8

42.9

24.6

12.7

20.6

42.9

57.2

17.5

52.5

0.34

GRO417-3

20

7/16 - 1/2

11-12

140

17.5

51

29.5

14.2

23.9

51

63.5

22.4

58.7

0.68

GRO417-4

30.8

9/16 - 5/8

14-16

162

20.6

67

35.8

17.5

30.2

67

76.2

25.4

65

1.13

GRO417-5

43.5

3/4

18

194

26.9

76.2

42.2

22.4

33.3

70

89

31.8

77.5

1.92

GRO417-6

65.3

7/8

20-22

226

33.3

92

49.3

25.4

38.1

82.5

102

38.1

90.5

3.28

GRO417-7

81.6

1

24-26

254

36.6

105

58.5

28.7

44.5

95.5

114

44.5

103

4.76

GRO417-8

100

1 1/8

26-30

283

39.6

114

65

31.8

51

105

127

51

116

6.46

GRO417-9

136

1-1/4 - 1 3/8

32-35

309

41.4

127

71

38.1

58.5

119

138

56.5

129

8.95

GRO417-10

170

1-1/2

38

355

49.3

137

81

41.4

70.5

132

151

62.5

155

13.2

GRO417-11

188

1-5/8

40-42

390

54

146

82.5

44.5

76.2

140

165

70

171

16.3

GRO417-12

268

1-3/4 - 1-7/8

44-48

445

55.5

171

95.5

51

79.5

162

191

76.2

198

26

GRO417-13

309

2 - 2-1/8

5054

505

62

194

111

57.2

95.5

187

216

82.5

224

35.8

GRO417-14

360

2-1/4 - 2-3/8

56-60

546

70

216

127

66.8

105

210

229

92

254

47.6

GRO417-15

424

2-1/2 - 2-5/8

64-67

597

79.5

241

140

74.5

114

235

248

102

270

64

GRO417-16

549

2-3/4 - 2-7/8

70-73

645

79.5

273

159

79.5

124

259

279

124

286

100

GRO417-17

656

3 - 3-1/8

75-80

689

85.6

292

171

86

133

292

305

133

298

125

GRO417-18

750

3-1/4 - 3-3/8

82-86

743

102

311

184

92

146

311

330

146

311

142

GRO417-19

820

3-1/2 - 3-5/8

88-92

787

102

330

197

98.5

165

330

356

159

330

181

GRO417-20

1005

3-3/4 - 4

94-102

845

108

362

216

108

184

362

381

178

356

246
