Features
▶ Temperature range of use: –40°C to +80°C
▶ Available in ordinary lay and Lang's lay
▶ Available in right hand and left hand
▶ Available in galvanized and ungalvanized
▶ Available in Plastic Insert and no plastic
▶ Suitable for multi-layer spooling in Lang‘s lay
Performance
1. Accurate wire pitch
2. Compact structure
3. Excellent breaking strength
4. Superior bending fatigue life
Advantage:
1.Accurate wire pitch
2.Compact structure
3.High breaking strength
4.Exceptional fatigue properties
5.Long life, reduced downtime costs
6.Accurate diameter for effective multi-layer spooling(Tolerance:±1%.)
7.Complete Quality Control system, Make sure the quality is the first aim in production.
8.Galvanized, Bright, Lubricated, Plastic insert, High tensile grade, Coated, Rotation rope, Non-rotation rope and so on.
Application:
Tower Crane(Trollery Rope, Boom Hosting Rope, Main Hoist Rope),
Container Crane(Trollery Rope),
Ship Unloader Crane(Boom Hoisting Rope, Racking Rope, Main Hoist Rope, Grab Closing Rope,
Quay Crane(Boom Hoist Rope),
Offshore Pedestal Crane(Boom Hoist Rope),
Overhead Crane(Main Hoist Rope),
Piling Crane(Pulling Rope),

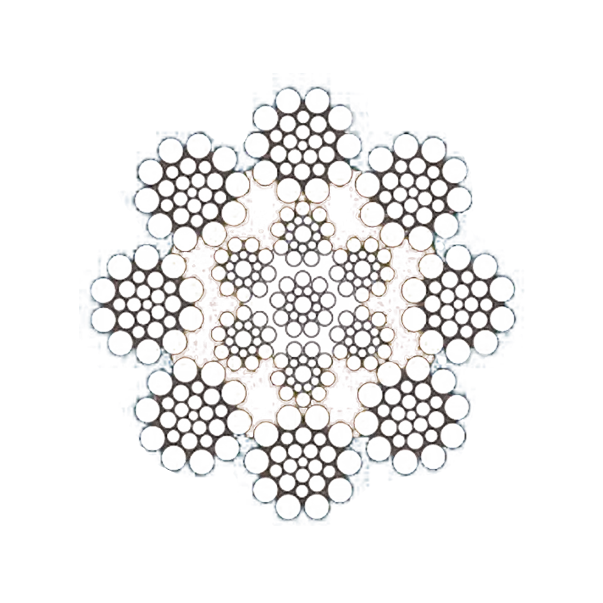

Nominal diameter, weight, tensile strength and minimum breaking load define the quality of 8 strand steel wire rope. Following parameters are obtained from sample test and can be used for a reference.
| Construction | Nominal Diameter | Approxi.Weight | Nominal Tensile Strength of rope (MPA) | |||
| D | Unit Weight | 1770 | 1870 | 1960 | 2160 | |
| mm | kg/m | Minimum Breaking Load (KN) | ||||
| 8x19 | 6 | 0.15 | 23 | 24 | 25 | 28 |
| 7 | 0.2 | 31 | 33 | 34 | 38 | |
| 8 | 0.26 | 40 | 43 | 45 | 49 | |
| 9 | 0.33 | 51 | 54 | 57 | 62 | |
| 10 | 0.41 | 63 | 67 | 70 | 77 | |
| 11 | 0.49 | 76 | 81 | 84 | 93 | |
| 12 | 0.59 | 91 | 96 | 100 | 111 | |
| 13 | 0.69 | 106 | 113 | 118 | 130 | |
| 14 | 0.8 | 124 | 130 | 137 | 151 | |
| 15 | 0.92 | 142 | 150 | 157 | 173 | |
| 8x26 | 16 | 1.04 | 161 | 170 | 179 | 197 |
| 17 | 1.18 | 182 | 192 | 202 | 222 | |
| 18 | 1.32 | 204 | 216 | 226 | 249 | |
| 19 | 1.47 | 227 | 240 | 252 | 278 | |
| 20 | 1.63 | 252 | 266 | 279 | 308 | |
| 22 | 1.97 | 305 | 322 | 338 | 372 | |
| 24 | 2.34 | 363 | 383 | 402 | 443 | |
| 26 | 2.75 | 426 | 450 | 472 | 520 | |
| 28 | 3.19 | 494 | 522 | 547 | 603 | |
| 8x31 | 30 | 3.66 | 567 | 599 | 628 | 692 |
| 32 | 4.17 | 645 | 682 | 715 | 787 | |
| 34 | 4.7 | 728 | 770 | 807 | 889 | |
| 36 | 5.27 | 817 | 863 | 904 | 997 | |
| 38 | 5.88 | 910 | 961 | 1008 | 1110 | |
| 40 | 6.51 | 1008 | 1065 | 1116 | 1230 | |
| 42 | 7.18 | 1112 | 1174 | 1231 | 1356 | |
| 44 | 7.88 | 1220 | 1289 | 1351 | 1489 | |
| 8x36 | 46 | 8.61 | 1333 | 1409 | 1476 | 1627 |
| 48 | 9.38 | 1452 | 1534 | 1608 | 1772 | |
| 50 | 10.18 | 1575 | 1664 | 1744 | 1922 | |
| 52 | 11.01 | 1704 | 1800 | 1887 | 2079 | |
| 54 | 11.87 | 1837 | 1941 | 2035 | 2242 | |
| 56 | 12.76 | 1976 | 2088 | 2188 | 2411 | |
| 58 | 13.69 | 2120 | 2239 | 2347 | 2587 | |
| 60 | 14.65 | 2268 | 2397 | 2512 | 2768 | |
| 62 | 15.64 | 2422 | 2559 | 2682 | 2955 | |
| 64 | 16.67 | 2666 | 2817 | 2953 | 3254 | |
| 66 | 17.73 | 3025 | 3196 | 3350 | 3691 | |
Notes:
1. Above parameters are used for reference only. Different testing methods and environmental factors such as weather, temperature, humidity, etc. may result in that actual data will be slightly different.
2. In addition to industrial standard, GROWORLD can customize steel wire ropes according to your requirements.
Groworld is mainly engaged in the production of metal wire rope products and related products, equipment and materials. It has formed the "Groworld" brand steel wire rope, stainless steel wire rope, rigging and drilling tools etc. we are one of the best special wire rope & sling manufacturers in China.
