Features of the Steel Wire Rope
▶ Temperature range of use: –40°C to +80°C
▶ Available in ordinary lay and Lang's lay
▶ Available in right hand and left hand
▶ Available in galvanized and ungalvanized
▶ Available in Plastic Insert and no plastic
▶ Suitable for multi-layer spooling in Lang‘s lay
▶ High Performance Application
Advantage:

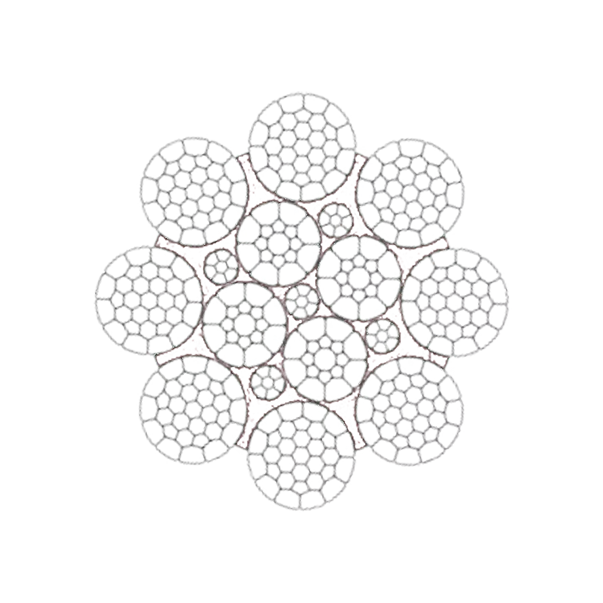

1.Plastic Encapsulated Core
2.Flexible 8 strands construction
3.Crush Resistant
4.Recommend For Multi-layer Coiling
5.High breaking strength
6.Complete Quality Control system, Make sure the quality is the first aim in production.
7.Galvanized, Bright, Lubricated, Plastic insert, High tensile grade, Coated, Rotation rope, Non-rotation rope and so on.
Application:
Container Crane(Trollery Rope),
Mobile Lattice Boom Crane(Boom Hoist Rope, Main Hoist Rope),
Nominal diameter, weight, tensile strength and minimum breaking load define the quality of 8 strand steel wire rope. Following parameters are obtained from sample test and can be used for a reference.
| Construction | Nominal Diameter | Approxi.Weight | Nominal Tensile Strength of rope (MPA) | |||
| D | Unit Weight | 1770 | 1870 | 1960 | 2160 | |
| mm | kg/m | Minimum Breaking Load (KN) | ||||
| 8xK19 | 6 | 0.17 | 29 | 31 | 32 | 35 |
| 7 | 0.23 | 39 | 41 | 43 | 48 | |
| 8 | 0.3 | 51 | 54 | 56 | 62 | |
| 9 | 0.38 | 65 | 69 | 71 | 79 | |
| 10 | 0.47 | 80 | 85 | 88 | 97 | |
| 11 | 0.57 | 96 | 101 | 107 | 118 | |
| 12 | 0.68 | 115 | 121 | 127 | 140 | |
| 13 | 0.8 | 135 | 143 | 149 | 164 | |
| 14 | 0.93 | 156 | 165 | 173 | 191 | |
| 15 | 1.06 | 179 | 189 | 198 | 219 | |
| 8xK26 | 16 | 1.21 | 204 | 216 | 226 | 249 |
| 17 | 1.36 | 230 | 243 | 255 | 281 | |
| 18 | 1.53 | 258 | 273 | 286 | 315 | |
| 19 | 1.7 | 288 | 304 | 318 | 351 | |
| 20 | 1.89 | 319 | 337 | 353 | 389 | |
| 22 | 2.28 | 386 | 408 | 427 | 470 | |
| 24 | 2.72 | 459 | 485 | 508 | 560 | |
| 26 | 3.19 | 538 | 568 | 596 | 657 | |
| 28 | 3.7 | 624 | 659 | 691 | 762 | |
| 8xK31 | 30 | 4.25 | 717 | 758 | 794 | 875 |
| 32 | 4.83 | 816 | 862 | 903 | 995 | |
| 34 | 5.46 | 921 | 973 | 1020 | 1124 | |
| 36 | 6.12 | 1032 | 1090 | 1143 | 1260 | |
| 38 | 6.82 | 1150 | 1215 | 1274 | 1404 | |
| 40 | 7.55 | 1274 | 1346 | 1411 | 1555 | |
| 42 | 8.33 | 1405 | 1484 | 1556 | 1715 | |
| 44 | 9.14 | 1542 | 1629 | 1708 | 1882 | |
| 8xK36 | 46 | 9.99 | 1685 | 1780 | 1866 | 2057 |
| 48 | 10.87 | 1835 | 1939 | 2032 | 2239 | |
| 50 | 11.8 | 1991 | 2103 | 2205 | 2430 | |
| 52 | 12.76 | 2154 | 2276 | 2385 | 2628 | |
| 54 | 13.76 | 2323 | 2454 | 2572 | 2834 | |
| 56 | 14.8 | 2498 | 2639 | 2766 | 3048 | |
| 58 | 15.88 | 2679 | 2830 | 2967 | 3270 | |
| 60 | 16.99 | 2867 | 3029 | 3175 | 3499 | |
| 62 | 18.14 | 3062 | 3235 | 3390 | 3736 | |
| 64 | 19.33 | 3262 | 3446 | 3613 | 3981 | |
| 66 | 20.56 | 3470 | 3666 | 3842 | 4234 | |
Notes:
1. Above parameters are used for reference only. Different testing methods and environmental factors such as weather, temperature, humidity, etc. may result in that actual data will be slightly different.
2. In addition to industrial standard, GROWORLD can customize steel wire ropes according to your requirements.
