Features of the Steel Wire Rope
▶ Temperature range of use: –40°C to +80°C
▶ Available in ordinary lay and Lang's lay
▶ Available in right hand and left hand
▶ Available in galvanized and ungalvanized
▶ Available in Plastic Insert and no plastic
▶ High Performance Application
▶ Suitable for multilayer spooling in Lang‘s lay
Advantage:
1.High breaking strength
2.Reduced rope sheave wear
3.Accurate diameter
4.Multi-layer spooling
5.high lifting operations
6.Long service life
7.Flexible Construction
8.Complete Quality Control system, Make sure the quality is the first aim in production.
9.Galvanized, Bright, Lubricated, Plastic insert, High tensile grade, Coated, Rotation rope, Non-rotation rope and so on.
Application:
Tower Crane(Main Hoist Rope),
Piling Crane(Main Hoist Rope)
Mobile Lattice Boom Crane(Main Hoist Rope),
Quay Crane(Main Hoist Rope),
Offshore Pedestal Crane(Main Hoist Rope),
Overhead Crane(Main Hoist Rope),

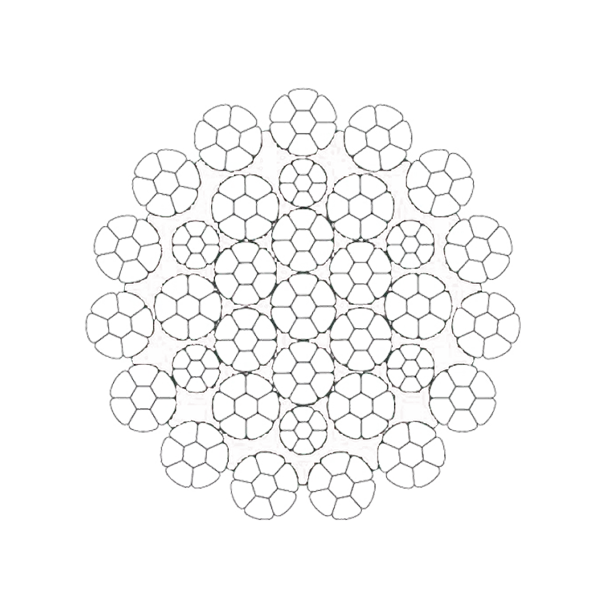

Nominal diameter, weight, tensile strength and minimum breaking load define the quality of 34 strand steel wire rope. Following parameters are obtained from sample test and can be used for a reference.
| Construction | Nominal Diameter | Approxi.Weight | Nominal Tensile Strength of rope (MPA) | |||
| D | Unit Weight | 1770 | 1870 | 1960 | 2160 | |
| mm | kg/m | Minimum Breaking Load (KN) | ||||
| 24WxK7 | 8 | 0.31 | 51 | 54 | 56 | 62 |
| 9 | 0.4 | 64 | 68 | 71 | 79 | |
| 10 | 0.49 | 79 | 83 | 88 | 97 | |
| 11 | 0.59 | 96 | 101 | 106 | 117 | |
| 12 | 0.71 | 114 | 120 | 127 | 140 | |
| 35WxK7 or 34xK7 | 13 | 0.83 | 134 | 142 | 149 | 164 |
| 14 | 0.96 | 156 | 165 | 172 | 190 | |
| 15 | 1.1 | 179 | 189 | 198 | 218 | |
| 16 | 1.25 | 203 | 214 | 225 | 248 | |
| 17 | 1.42 | 230 | 243 | 254 | 280 | |
| 18 | 1.59 | 257 | 272 | 285 | 314 | |
| 19 | 1.77 | 287 | 303 | 318 | 350 | |
| 20 | 1.96 | 318 | 336 | 352 | 388 | |
| 22 | 2.37 | 385 | 407 | 426 | 469 | |
| 24 | 2.82 | 458 | 484 | 507 | 559 | |
| 26 | 3.31 | 537 | 567 | 595 | 656 | |
| 28 | 3.84 | 623 | 658 | 690 | 760 | |
| 30 | 4.41 | 715 | 755 | 792 | 873 | |
| 32 | 5.02 | 814 | 860 | 901 | 993 | |
| 34 | 5.66 | 919 | 971 | 1017 | 1121 | |
| 36 | 6.35 | 1030 | 1088 | 1141 | 1257 | |
| 38 | 7.08 | 1148 | 1213 | 1271 | 1400 | |
| 40 | 7.84 | 1272 | 1344 | 1408 | 1552 | |
| 42 | 8.64 | 1402 | 1481 | 1552 | 1711 | |
| 44 | 9.49 | 1539 | 1626 | 1704 | 1878 | |
| 46 | 10.37 | 1682 | 1777 | 1862 | 2052 | |
| 48 | 11.29 | 1831 | 1934 | 2028 | 2235 | |
| 50 | 12.25 | 1987 | 2099 | 2200 | 2425 | |
| 52 | 13.25 | 2149 | 2270 | 2380 | 2622 | |
| 54 | 14.29 | 2317 | 2448 | 2566 | 2828 | |
| 56 | 15.37 | 2492 | 2633 | 2760 | 3041 | |
| 58 | 16.48 | 2673 | 2824 | 2960 | 3263 | |
| 60 | 17.64 | 2861 | 3023 | 3168 | 3491 | |
| 62 | 18.84 | 3055 | 3228 | 3383 | 3728 | |
| 64 | 20.07 | 3255 | 3439 | 3605 | 3972 | |
| 66 | 21.34 | 3462 | 3658 | 3833 | 4225 | |
| 40WxK7 | 68 | 22.66 | 3675 | 3883 | 4069 | 4485 |
| 70 | 24.01 | 3894 | 4114 | 4312 | 4752 | |
| 72 | 25.40 | 4120 | 4353 | 4562 | 5028 | |
| 74 | 26.83 | 4352 | 4598 | 4819 | 5311 | |
| 76 | 28.30 | 4590 | 4849 | 5083 | 5602 | |
Notes:
1. Above parameters are used for reference only. Different testing methods and environmental factors such as weather, temperature, humidity, etc. may result in that actual data will be slightly different.
2. In addition to industrial standard, GROWORLD can customize steel wire ropes according to your requirements.
