The biggest difference is that the center hole of short bow lugs is smaller and the bottom connection is more chubby than short bow sockets.And with casting by lead alloy,the short bow lugs is popular in wire rope sling clips.
Details:
Material: high strength steel
Surface: painting black(as requirements)
Technology: Casting
Shape: Pear-shaped
Usage: Wire rope sling clips
Recommend rope diameter:10 mm-56 mm(as requirements)
Advantages:
Variety of options
Anti-corrosion and durable
Better fixedness
Specification:

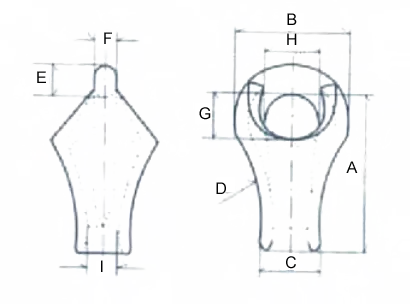

Drawing/sheet of short bow lugs
Rope dia.(mm) | Dimensions (mm) | ||||||||
A | B | c | D | E | F | G | H | I | |
10-11 | 69 | 48 | 22 | 195 | 12 | 12 | 20 | 24 | 12 |
12-13 | 79 | 56 | 25 | 195 | 15 | 14 | 22 | 25 | 14 |
14-15 | 91 | 64 | 28 | 220 | 17 | 16 | 24 | 29 | 16 |
16-17 | 103 | 70 | 31 | 220 | 19 | 18 | 26 | 31 | 18 |
18-19 | 114 | 84 | 33 | 245 | 21 | 19 | 3o | 38 | 20 |
20-21 | 129 | 84 | 33 | 310 | 23 | 21 | 33 | 42 | 22 |
22-24 | 140 | 100 | 40 | 310 | 26 | 23 | 37 | 44 | 26 |
25-27 | 158 | 100 | 43 | 350 | 28 | 25 | 39 | 48 | 29 |
28-30 | 171 | 120 | 45 | 350 | 31 | 27 | 40 | 56 | 31 |
31-33 | 190 | 120 | 52 | 445 | 32 | 29 | 45 | 58 | 35 |
34-36 | 203 | 142 | 55 | 445 | 36 | 31 | 50 | 64 | 37 |
37-39 | 225 | 142 | 60 | 495 | 39 | 35 | 51 | 68 | 40 |
40-42 | 242 | 166 | 63 | 555 | 43 | 37 | 59 | 70 | 43 |
43-45 | 265 | 166 | 68 | 595 | 47 | 41 | 62 | 72 | 47 |
46-48 | 286 | 166 | 75 | 595 | 49 | 43 | 66 | 80 | 51 |
56 | 340 | 220 | 84 | 880 | 60 | 54 | 75 | 9o | 59 |
