Description:

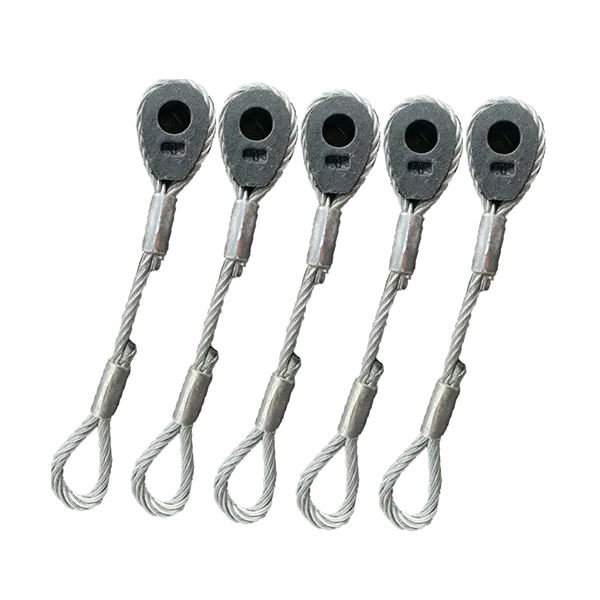

Pressed wire rope sling with heavy thimble

Wire rope slings are both flexible and resistant to abrasion. These characteristics are determined by the rope construction.

1. The aluminum alloy pressing joint rigging shall use steel wire rope with strength below 1770N/mm2.

2. The sling length L, wire rope specification d, wire rope structure are determined by the user for reference only, and we can make according to the user's requirements.

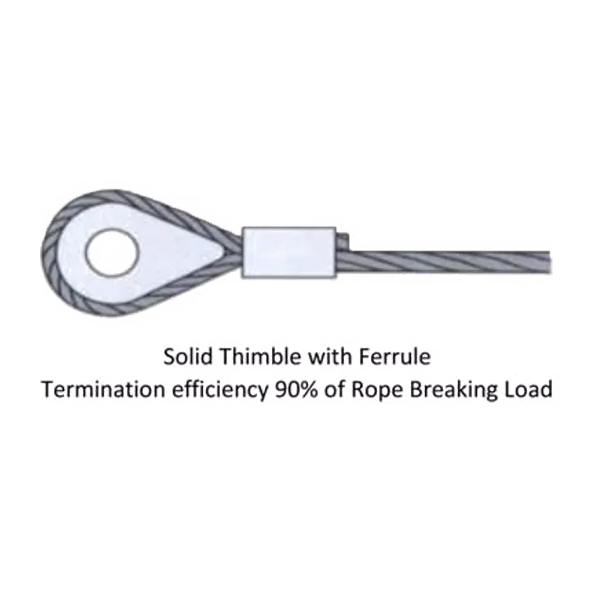

3. Adding sling thimbles and heavy thimbles can prolong the service life of wire rope slings and make the configuration more reasonable.

4. The safety factor is determined according to the working conditions, generally 4~6, and the operating ambient temperature is - 40 ℃~150 ℃

5. When the joint is severely squeezed, cracked, deformed, corroded, and the diameter is reduced to 95% of d, it shall be stopped.
