Description:

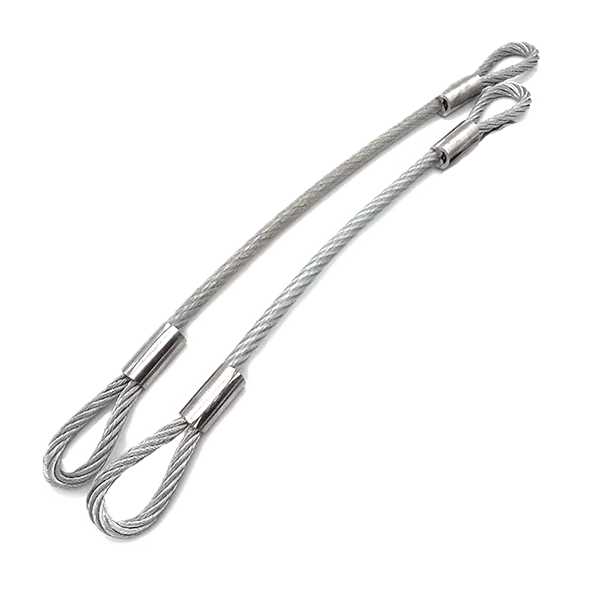

Pressed wire rope sling with thimble hard eye

Wire rope slings are both flexible and resistant to abrasion. These characteristics are determined by the rope construction.

1. The aluminum alloy pressing joint rigging shall use steel wire rope with strength below 1770N/mm2.

2. The sling length L, wire rope specification d, wire rope structure are determined by the user for reference only, and we can make according to the user's requirements.

3. Adding sling thimbles and heavy thimbles can prolong the service life of wire rope slings and make the configuration more reasonable.

4. The safety factor is determined according to the working conditions, generally 4~6, and the operating ambient temperature is - 40 ℃~150 ℃

5. When the joint is severely squeezed, cracked, deformed, corroded, and the diameter is reduced to 95% of d, it shall be stopped.

Steel wire rope sling is a kind of rope which is processed with steel wire rope as raw material and is mainly used for hoisting, traction, tensioning and carrying. It is called steel wire rope sling. Wire rope slings are widely used in steel, chemical, transportation, ports and other industries due to their high strength, light weight, stable operation, and resistance to sudden breaking. The varieties of steel wire rope used include phosphating coated steel wire rope, galvanized steel wire rope, stainless steel wire rope and smooth steel wire rope. The galvanized steel wire rope has corrosion resistance, and the phosphating coated steel wire rope has wear resistance and corrosion resistance.
